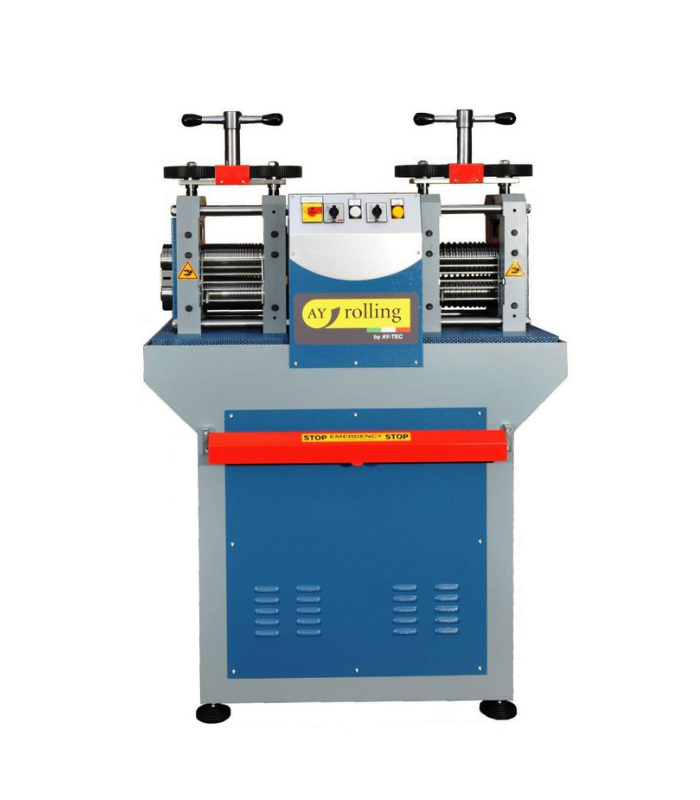

filly 160
- Filly 160 rolling mills are the ideal solution for industrial laboratories.
- The various versions available make it possible to satisfy the most diverse production requirements, both for roughing and finishing of sheet and wire.
- The rolling mill consists of a high strength steel frame and castles.
- The cylinder supports are in high resistance cast bronze and with fully automatic lubrication via an open circuit recovery pump.
General Characteristics
– Board width: 160 mm.
– Max opening: 24 mm.
– Tolerance on laminate: +/- 0.025 mm.
Type:
– Sheet + Wire 160 mm boards.
– Sheet + Sheet* 160 mm boards.
– Wire + Wire 160 mm boards.
– OVC ( Variable Speed Option).
from 0.5 to 4.3 m/min
Power supply:
– Three-phase: 230V / 50 Hz.
– Three-phase: 400V / 50 Hz.
– Other power supplies on request.
