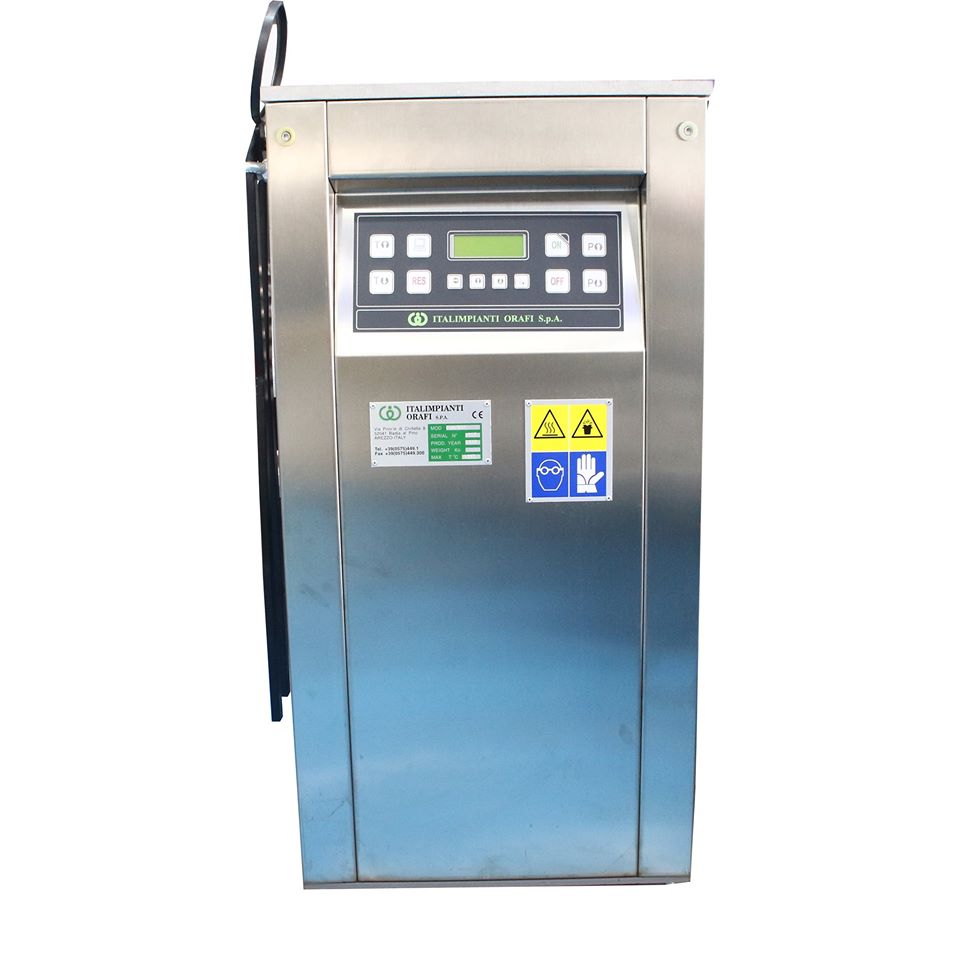

Furnaces for Melting type FIM/NT (Manual Extraction)
Absolute alloy homogeneity guaranteed by the medium frequency converter
Reduction of melting losses due to uniform temperature distribution on the melting material. This avoids the ‘skin effect’ typical of high frequency converters
Better malleability of the alloys allowing for considerable section reductions without annealing
Possibility to use different types of crucibles including graphite, clay-graphite, silicon carbide, zirconia etc.
Automatic temperature control by immersion thermocouple or optical pyrometer
Automatic power control regardless of quantity or type of metal
Computerised alarm diagnostics available in four languages. Alarm messages appear on the display along with trouble-shooting guide lines.
Automatic turn-off function for the furnace and cooling plant if not used for a certain amount of time (useful at the end of the working day)
Pouring can be done by manual extraction of the crucible, tilting by handwheel or hydraulic tilting
A closed cycle deionization system for cooling water is available as a standard feature on larger furnaces. This system greatly reduces maintenance operations on these plants.
|TECHNICAL DATA||FIM / 5NT||FIM / 7nt||FIM / 10NT||FIM / 12NT|
|Absorbed power||5.5 kW||7 kW||10 kW||12 kW|
|Power output||5.1 kW||6.5 kW||9.5 kW||11.4 kW|
|Useful capacity of graphite crucible (kg Au 18 kt)||4.5||6.5||10||13|
|Useful capacity of silicon carbide crucible (kg Au 18 kt)||4||–||10||–|
|Melting time at max load (minutes) from cold||15||15||15||15|
|Required cooling power (frig/h)||1700||2500||3800||4500|
|Chiller for 8 hours working||FRIDGE 10||FRIDGE 15||FRIDGE 15||FRIDGE 20|
|Minimum flow rate @25 °C (l/min)||6||15||20||20|
|Overall Dimensions (mm)||485x510x915||485x510x915||485x510x915||485x510x915|
|Weight||190 Kg||190 Kg||216 Kg||216 Kg|
