| TECHNICAL DATA | FIM/5NT | FIM/7NT | FIM/10NT | FIM/12NT |
| Power supply | Three-phase | Three-phase | Three-phase | Three-phase |
| Absorbed power | 5.5 kW | 7 kW | 10 kW | 12 kW |
| Power output | 5.1 kW | 6.5 kW | 9.5 kW | 11.4 kW |
| Useful capacity of graphite crucible (kg Au 18 kt) | 4,5 | 6.5 | 10 | 13 |
| Useful capacity of silicon carbide crucible (kg Au 18 kt) | 4 | – | 10 | – |
| Melting time at max load (minutes) from cold | 15 | 15 | 15 | 15 |
| Temperature measurement | T/O | T/O | T/O | T/O |
| Required cooling power (frig/h) | 1700 | 2500 | 3800 | 4500 |
| Chiller for 8 hours working | FRIGO 10 | FRIGO 15 | FRIGO 15 | FRIGO 20 |
| Minimum flow rate @25 °C (l/min) | 6 | 15 | 20 | 20 |
| Overall Dimensions (mm) | 485x510x915 | 485x510x915 | 485x510x915 | 485x510x915 |
| Weight | 190 Kg | 190 Kg | 216 Kg | 216 Kg |

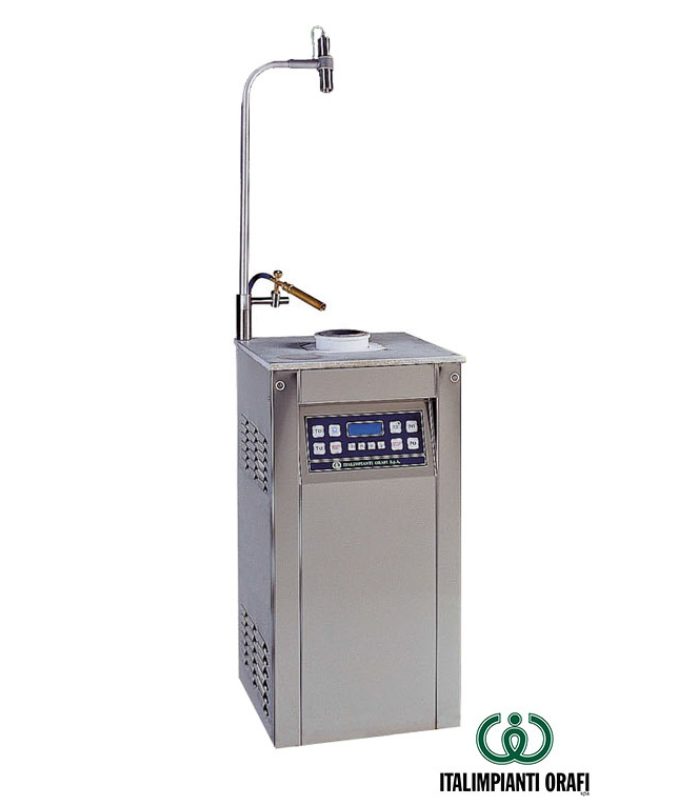

Italimpianti فرن صب إلكتروني
-
Absolute alloy homogeneity guaranteed by the medium frequency converter.
-
Reduction of melting losses due to uniform temperature distribution on the melting material. This avoids the ‘skin effect’ typical of high frequency converters.
-
Better malleability of the alloys allowing for considerable section reductions without annealing.
-
Possibility to use different types of crucibles including graphite, clay-graphite, silicon carbide, zirconia etc.
-
Automatic temperature control by immersion thermocouple or optical pyrometer.
-
Automatic power control regardless of quantity or type of metal.
-
Computerised alarm diagnostics available in four languages. Alarm messages appear on the display along with trouble-shooting guide lines.
-
Automatic turn-off function for the furnace and cooling plant if not used for a certain amount of time (useful at the end of the working day).
-
Pouring can be done by manual extraction of the crucible, tilting by handwheel or hydraulic tilting.
-
A closed cycle deionization system for cooling water is available as a standard feature on larger furnaces. This system greatly reduces maintenance operations on these plants.
