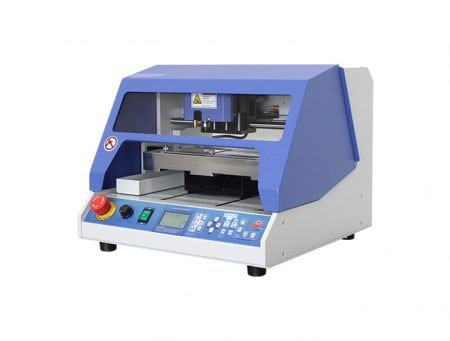

Magic-F350 is a specialized machine for metal cutting which includes cutting oil circulator.
It is capable of engraving letters and patterns on jewelry & metal materials. Its upgraded speed and cutting oil make it possible to
complete the work without noise and time-wasting. Specialized cutting clamp for F350 and cutting oil could also contribute to your
better result by filtering chips and prolonging the tool’s life.
Specification
| Size | 470mm(W) x 375mm(H) x 455mm(D) |
| Max. engraving area | 220mm(X) x 100mm(Y) x 38.5mm(Z) |
| Resolution | (XY)0.005mm / (Z)0.00125mm |
| Tool Diameter | 4mm |
| Weight | 38.5Kg |
| Spindle Revolution | 20,000 RPM |
| Spindle Motor Power | 70W |
| Power Consumtion | 120W |
| Power Supply | AC 100~240V 50/60Hz |
