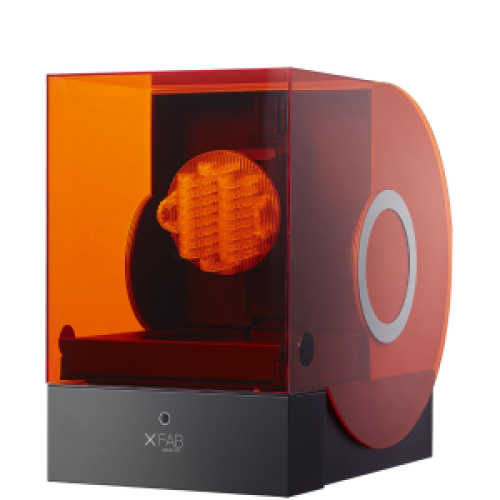

XFAB 3500HD ماكنة طباعة ثلاثية الابعاد DWS

Main Features

  • Fast and precise stereolithographic printer
  • “Plug and Play” system
  • Material developed and produced by DWS
  • TTT System – Tank Translation Technology that reduces wear and tear of tanks



Technology: Laser Stereolithography
Working Area: Ø 180×180 mm
Laser Source: Solid State BlueEdge®
Slice Thickness: 10-100 microns (mechanical resolution, the actual value depends on the material used)
Scanning Method: Galvanometer
Software: Fictor® XFAB Edition and Nauta®+ included
Input File Format: .stl, .slc, .nauta, .fictor, .mkr, .3dm, 3ds, .ply, .obj, .lwo, .x
Machine Size: 400 x 606 x 642 mm
Weight: 31 Kg
Operating Temperature and Humidity: 20°-25°C / 60%
Power Supply: 24V DC with AC 240/100V / 50-60 Hz external supplier included
Electrical Consumption: 160W
PC Minimum Requirements: Windows 8 or higher*
Memory: RAM 4 GB*
Graphics Card: OpenGL 2.0 compatible or above*
I/O Interfaces: 1 USB port
Connectivity: 1 active internet connection
